Electrical Equipment’s

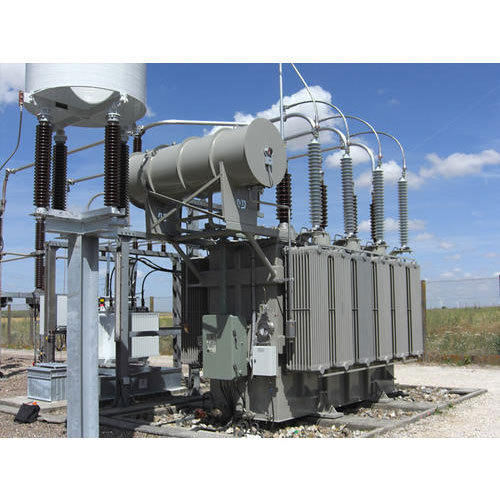

Transformer, device that transfers electric energy from one alternating-current circuit to one or more other circuits, either increasing (stepping up) or reducing (stepping down) the voltage. Transformers are employed for widely varying purposes; e.g., to reduce the voltage of conventional power circuits to operate low-voltage devices, such as doorbells and toy electric trains, and to raise the voltage from electric generators so that electric power can be transmitted over long distances.

Transformer Range:
 Power Transformer : UPTO 50MVA & 6KV - 132KV CLASS.
 Distribution Transformer : UPTO 10MVA & 415V - 132KV CLASS.
 Dry Type Transformer : UPTO 5MVA & 415V - 33KV CLASS VPI and CRT BOTH TYPE.
 Inverter Duty Transformer : UPTO 10MVA & 11KV - 33KV CLASS 2 WINDING TO 5 WINDING TRANSFORMER.
 ARC Furnace Transformer : UPTO 50MVA & 11KV - 132KV CLASS.
 LRF Transformer : UPTO 50MVA & 11KV - 132KV CLASS.
 Scott Connected Transformer : UPTO 5MVA & 415V - 33KV CLASS.
 Earthing Transformer : UPTO 5MVA & 415V - 33KV CLASS.
 Generator Duty Transformer : UPTO 5MVA & 415V - 66KV CLASS.
 Star Rated Distribution Transformer : UPTO 2500KVA & 11KV - 33KV CLASS.

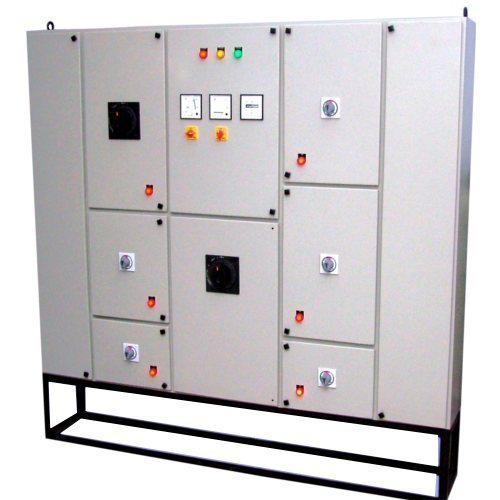

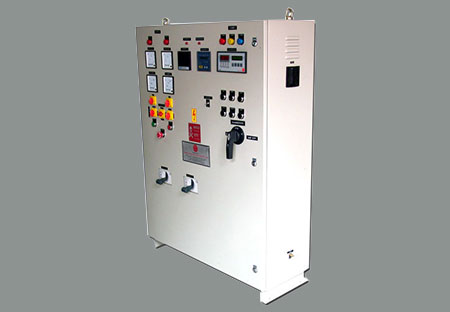

LT Distribution Board

LT Panel is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution boards. These panels are used in industries both for internal and external use and therefore, they are quite rugged to with stand different climatic conditions. Our LT panels are designed to work with low electricity consumption that makes them cost effective.

 Design and conceptualization based on Client design and specifications.
 Preparation of detailed drawings, site set out.
 Type-Draw out/Non Draw out.
 Application-Power & Distribution.
 Type- Indoor/Outdoor.
 IP54 protection.
 Low maintenance required.

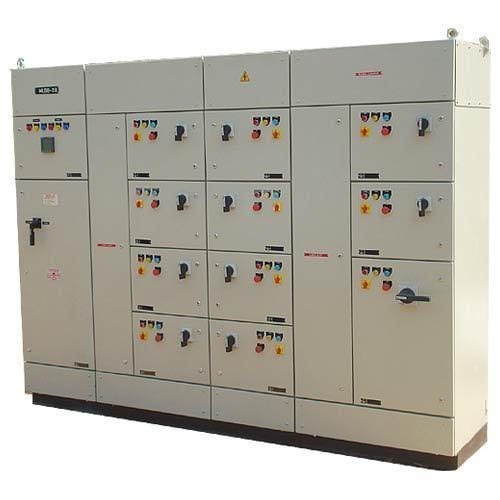

MCC& PCC Panel

MCC stands for motor control center. It consists of feeders for motors and blowers. Feeders are designed according to the motor rating. In most of the MCCs, auto/manual provision will be there. With manual provision motors can be operated manually. In auto provision external signal is required to start the motor. The signal is given by the control panel. Indicators for the motor operation also will be present in control panel.
PCC Panels are the most essential part of electrical system of an industry from where the power of the industry is controlled. Perfect Products (India) is widely known for premium quality PCC panels designed and manufactured according to the customer specifications. Best quality switchgear and busbar are used for reliable and efficient performance.

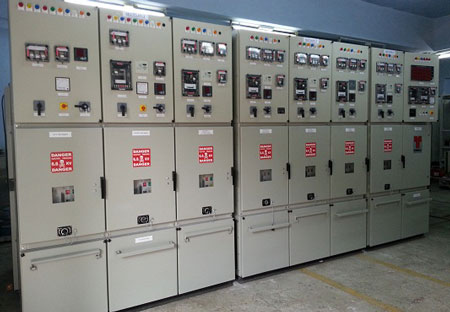

HT & LT Panel (LBS, VCB, RMU, Metering Panels)

We offer CPRI tested HT & LT panels rated 11kv & above. HT panels are typically used for power loads above 63KVA and LT panels applications are rated at 415V.

  HT panels includes:

 LBS Panels
 VCB Panels
 Metering panels
 Load Break Switches
 Vacuum Circuit Breakers
 Ring Main Units (RMU)

  LT panels includes:

 Power Distribution panel
 Power factor correction panel
 Low voltage metering panel
 Synchronization panel

Indoor,Outdoor and Compact Substations

Compact substations or packaged Substations are used for energy transformation in secondary distribution network from MV to LV. This is compact size, prefabricated compact sub stations which is widely used in three phases power distribution system with the voltage rating from 11KV to 33KV for electricity Distributing. Being degree of protection IP55 this can be installed outdoor by occupying the small area. These substations are typically installed in locations accessible to the public and ensure protection for all people according to specified service conditions.
This is an integral parts of an electrical distribution system which has undergone many Up-gradations in terms of technology, components and forms. Today we need substations which are compact as well as power efficient and safe. Our Compact substation is ready to install product that can save space , time and cost of a project.
